11kW Solar Water Pump Inverter in Islamabad, Pakistan

Project Introduction

In recent years, the main driver of Pakistan's economic growth has been the agricultural sector. The local government sector has also given high priority to investment in agricultural infrastructure development.

The challenge:

The problem of energy and water sources is one of the most important issues many countries are faced with. Around more than 30% agricultural pumps are not available to connect with grid electricity due to poor power facilities. And 50% farms cannot get well irrigated because of poor water conservancy infrastructure.  Nowadays the cost of diesel is rapidly increasing，so the cost of maintenance on diesel generator pump system is very high. It is urgent and important to find a sustainable way for agricultural irrigation.

The solution:

Solar powered water pump technology is a very good solution to agricultural irrigation. The system consists of 13.5kW solar array，11kW pump inverter and 11kw pump and provides 8m³/h water for irrigation.

Project Products

Pump:

Rated Power:  11kW
Rated Voltage: 380VAC 3 Phase
Rated Current: 25A
Rated Frequency: 50Hz
Rated RPM： 2850RPM

Solar Pump Controller:

Drive Brand /Model：VEICHI / SI30-D5-011G-R
Rated Power/Current: 11kw/25A
Rated Output: 380VAC 3 Phase
Input Voltage Range: 300VDC –850VDC

Solar Array:

Solar Array：15*3
Total Power：13500W
Total Vmp：580VDC

The result:

With the water shortage completely resolved, the project will ease the livelihoods of communities and livestock.

Pictures:

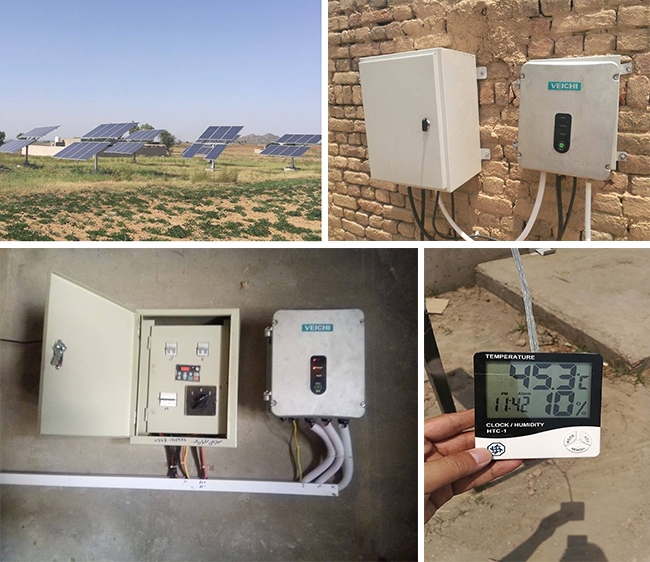

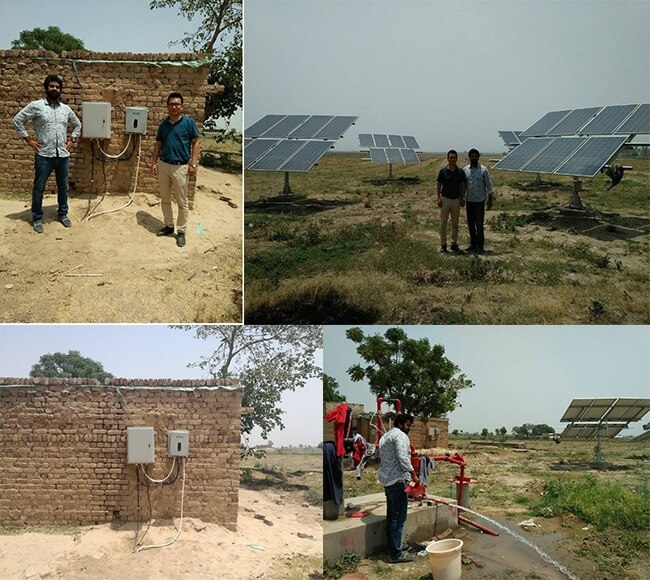

Case scene
