11kW Solar Water Pump Inverter in Lahore，Pakistan

Project Introduction

Veichi Series 11kW solar water pumping system has been successfully installed in Pakistan. The project was invested by the local government for irrigating rice fields.

The challenge:

The problem of energy and water sources is one of the most important issues many countries are faced with. Around more than 30% agricultural pumps are not available to connect with grid electricity due to poor power facilities. And 50% farms cannot get well irrigated because of poor water conservancy infrastructure.  Nowadays the cost of diesel is rapidly increasing，so the cost of maintenance on diesel generator pump system is very high. It is urgent and important to find a sustainable way for agricultural irrigation.

The solution:

Solar powered water pump technology is a very good solution to agricultural irrigation. The system consists of 14.8kW solar array，11kW pump inverter and 11kw pump and provides 18m³/h water for irrigation

Project Products:

Pump:

Rated Power:  11kW
Rated Voltage: 380VAC 3 Phase
Rated Current: 25A
Rated Frequency: 50Hz
Rated RPM： 2950RPM

Solar Pump Controller:

Drive Brand /Model：VEICHI / SI20-D5-011G
Rated Power/Current: 11kw/25A
Rated Output: 380VAC 3 Phase
Input Voltage Range: 250VDC –780VDC

Solar Array:

Solar Array：16Pcs*3
Total Power：14880W
Total Vmp：590VDC

The result:

With the water shortage completely resolved, the project will ease the livelihoods of communities and livestock.

Pictures:

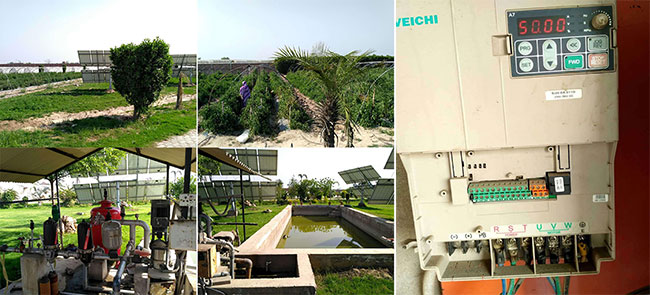

Case scene
