11kW Solar Water Pump Inverter in Fayum, Egypt
Panoramica del progetto
Site: A farm in the desert
Date: May 2021
Location: Fayum Province, Egypt
Industry: Agricultural Irrigation, Fruit Tree Irrigation
Project scope: To develop a new series of solar pumps with the help of VEICHI solar pump drives
VEICHI deliveries: Solar PV module array, SI23 solar pump drive, a motor
Project Introduction
In May 2021, VEICHI SI23 series 11kW AC solar pumping system was successfully installed in a farm in Egypt. The project is mainly used to provide irrigation water to the farm.
The solution:
With the water shortage completely resolved, the project will alleviate the livelihoods of communities and livestock.
Project Products:
Pump:
Rated Power: 11kW
Rated Voltage: 380VAC 3 Phase
Rated Current: 25A
Rated Frequency: 50Hz
Rated RPM： 2920RPM
Solar Pump Controller:
Drive Brand /Model：VEICHI / SI23-D5-011G-A
Rated Power/Current: 11Kw/25A
Rated Output: 380VAC 3 Phase
Input Voltage Range: 250VDC –780VDC
Solar Array:
Solar Array：51Pcs
Total Power：19380W；
Total Voc：714VDC
The result:
The scope of the project included the supply and installation of six VEICHI series solar water pumping systems, which can provide 400 cubic meters per day at a head of 180m. soalr pumping systems do not require batteries. The solar generator supplies the pumps during the day and can be switched to grid power at night if necessary to meet the 24-hour operation of the pumps.
Pictures:

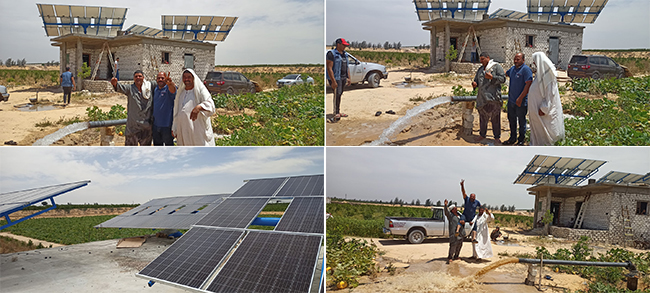

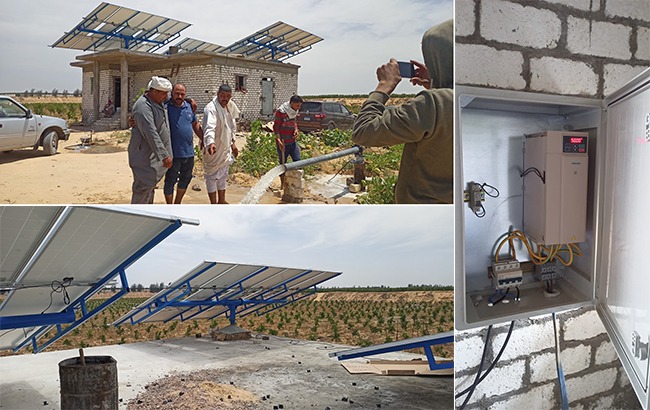

Case scene
