2.2kW Solar Water Pump Inverter in Guizhou，China

Project Introduction

The installation of sewage purification system is a project strongly supported by the government. The fountain aerator is a highly efficient and energy-saving water treatment aeration equipment designed for water resources, water environment and water ecosystem protection and restoration, improving the mobility and self-purification capacity of water bodies, and treating polluted waters.

The challenge:

The overall equipment installation is difficult, need more than one person at the same time to install and set parameters, but also to prevent the risk that rising water may bring to the equipment, to prevent the equipment into the water, we provide IP65 waterproof grade SI30 with booster module machine.

The solution:

Use rope to fix the four corners, leaving enough length to avoid damage to equipment caused by rising water, our SI30 machine comes with a booster system can better meet the needs of the site, but also power on the self-start function, remote monitoring and control equipment and other functions.

Project Products:

Pump：

Rated Power: 1.5KW 2HP
Rated Voltage: AC220V 3 PHASE
Rated Current: 6.5A

solar pump inverter:

Model: SI30-D3-2R2G
Rated Power: 2.2KW
Rated Output Voltage: AC220V 3 PHASE
Rated Current: 10A
DC input range: 150~450VDC

Solar panel:

Rated power: 300W
Voc: 37.82V
parallel: 1
Series: 10
Total Power: 3000W
Total Voc: 378.2V

The result:

Perfectly solves the problem of eutrophication in water bodies and makes a great contribution to sewage treatment.

Pictures:

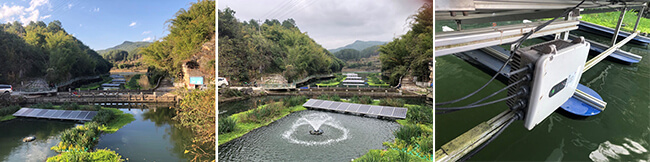

Case scene
