90kW Solar Water Pump Inverter in Cairo, Egypt

Project Introduction

The main driver of Egypt's economic growth in recent years has come from the agricultural sector. Local government departments also attach great importance to investment in agricultural infrastructure construction.

The challenge:

The problem of energy and water sources is one of the most important issues many countries are faced with. Around more than 30% agricultural pumps are not available to connect with grid electricity due to poor power facilities. And 50% farms cannot get well irrigated because of poor water conservancy infrastructure.  Nowadays the cost of diesel is rapidly increasing，so the cost of maintenance on diesel generator pump system is very high. It is urgent and important to find a sustainable way for agricultural irrigation.

The solution:

Solar powered water pump technology is a very good solution to agricultural irrigation. The system consists of 96kW solar array，90kW pump inverter and 75kw pump and provides 60m³/h water for irrigation.

Project Products:

Pump:

Rated Power:  75kW
Rated Voltage: 380VAC 3 Phase
Rated Current: 150A
Rated Frequency: 50Hz
Rated RPM： 2950RPM

Solar Pump Controller:

Drive Brand /Model：VEICHI / SI20-T3-090G
Rated Power/Current: 90kw/180A
Rated Output: 380VAC 3 Phase
Input Voltage Range: 250VDC –780VDC

Solar Array:

Solar Array：16Pcs*20
Total Power：96000W
Total Vmp：590VDC

The result:

The project will ease the livelihoods of communities and livestock as water scarcity is completely resolved.

Pictures:

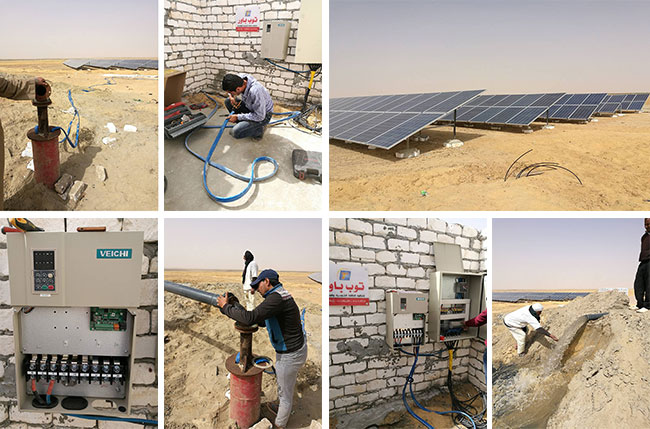

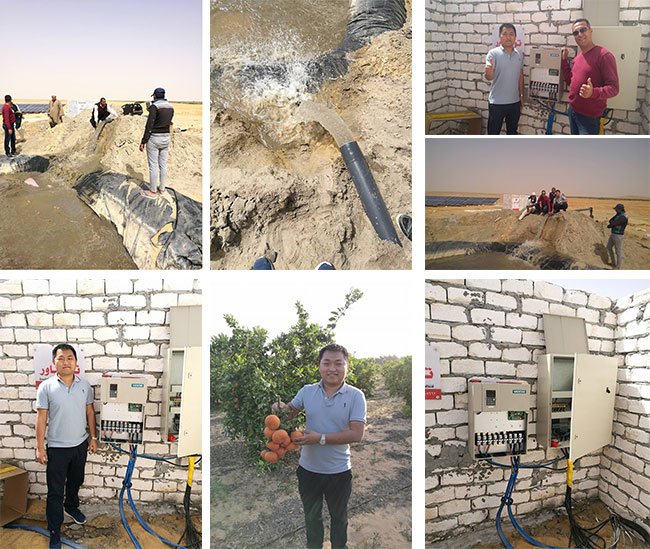

Case scene
